For sale are used wiring diagrams for OMC Evinrude Johnson motors. Exact year is unknown, but circa 1980s.
This is a color coded wiring guide. The wires are clearly labeled.
Please see the pictures for the models covered. These are on a large sheet of paper, not individual pages.
Covers:
9.9, 9.9 Sail, 15 Electric Start
25 and 30 electric start (at engine)
40 and 50 electric start (at engine)
You will get these exact used wiring diagrams.
This is a color coded wiring guide. The wires are clearly labeled.
Please see the pictures for the models covered. These are on a large sheet of paper, not individual pages.
Covers:

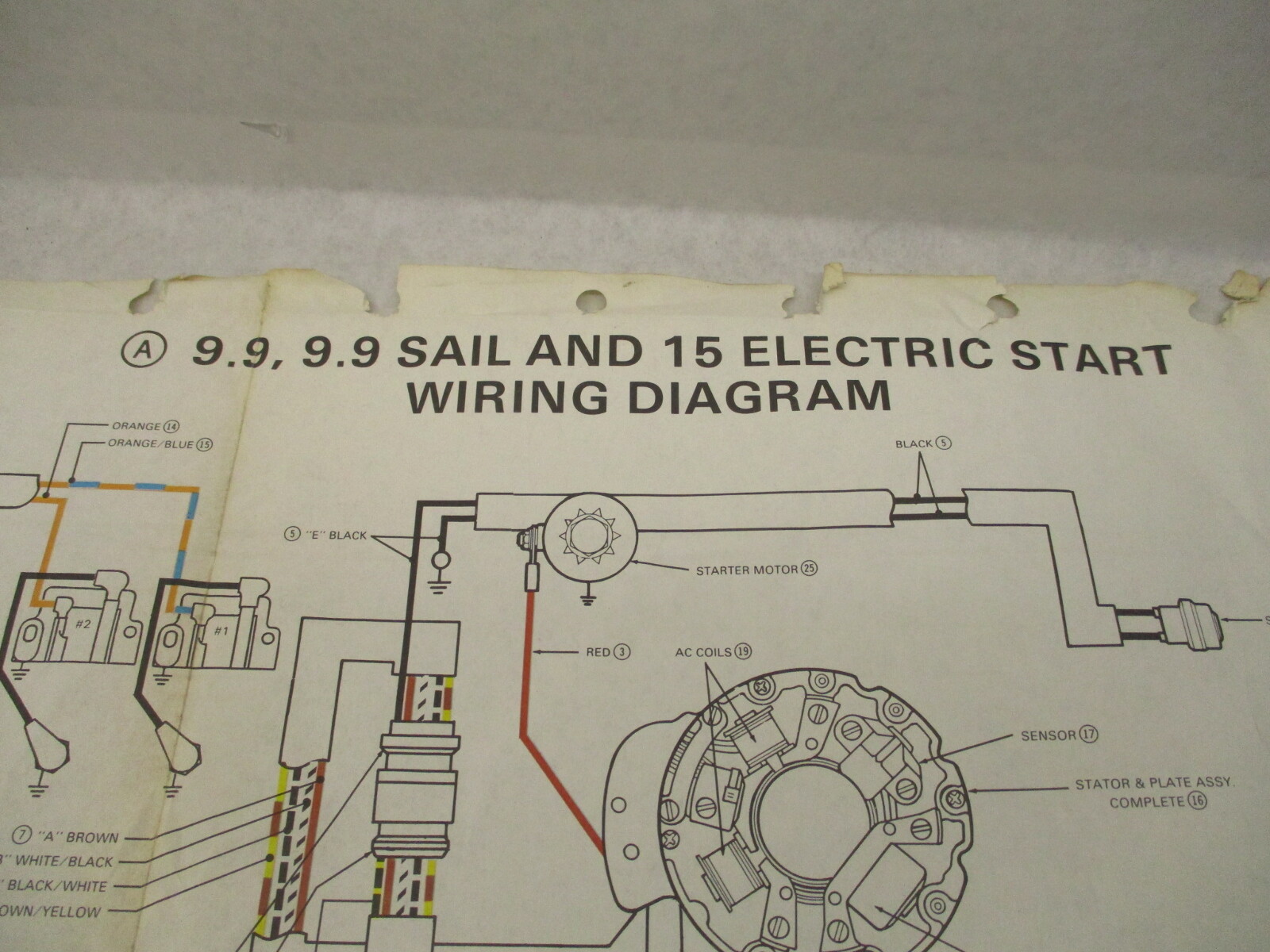

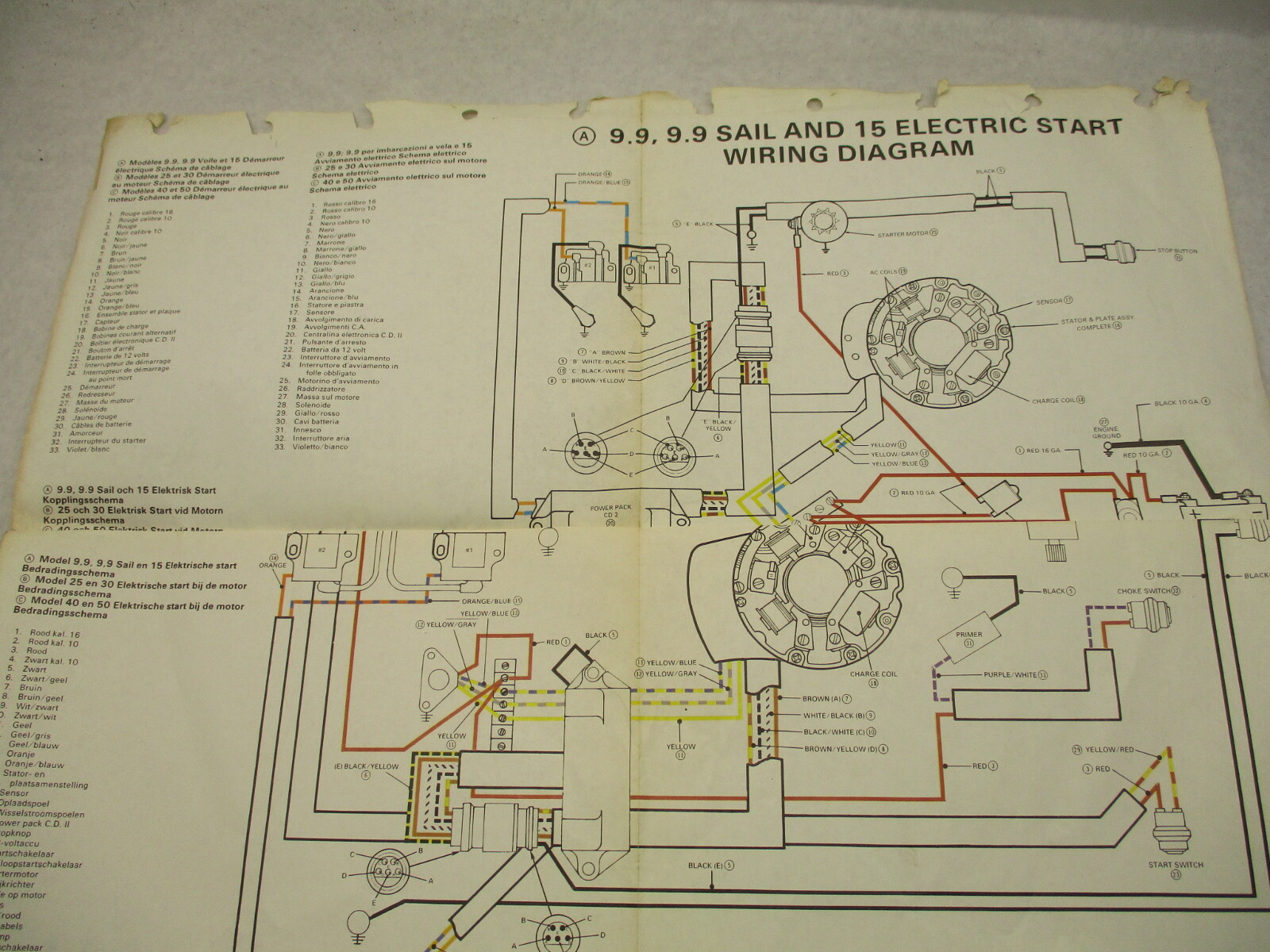

9.9, 9.9 Sail, 15 Electric Start

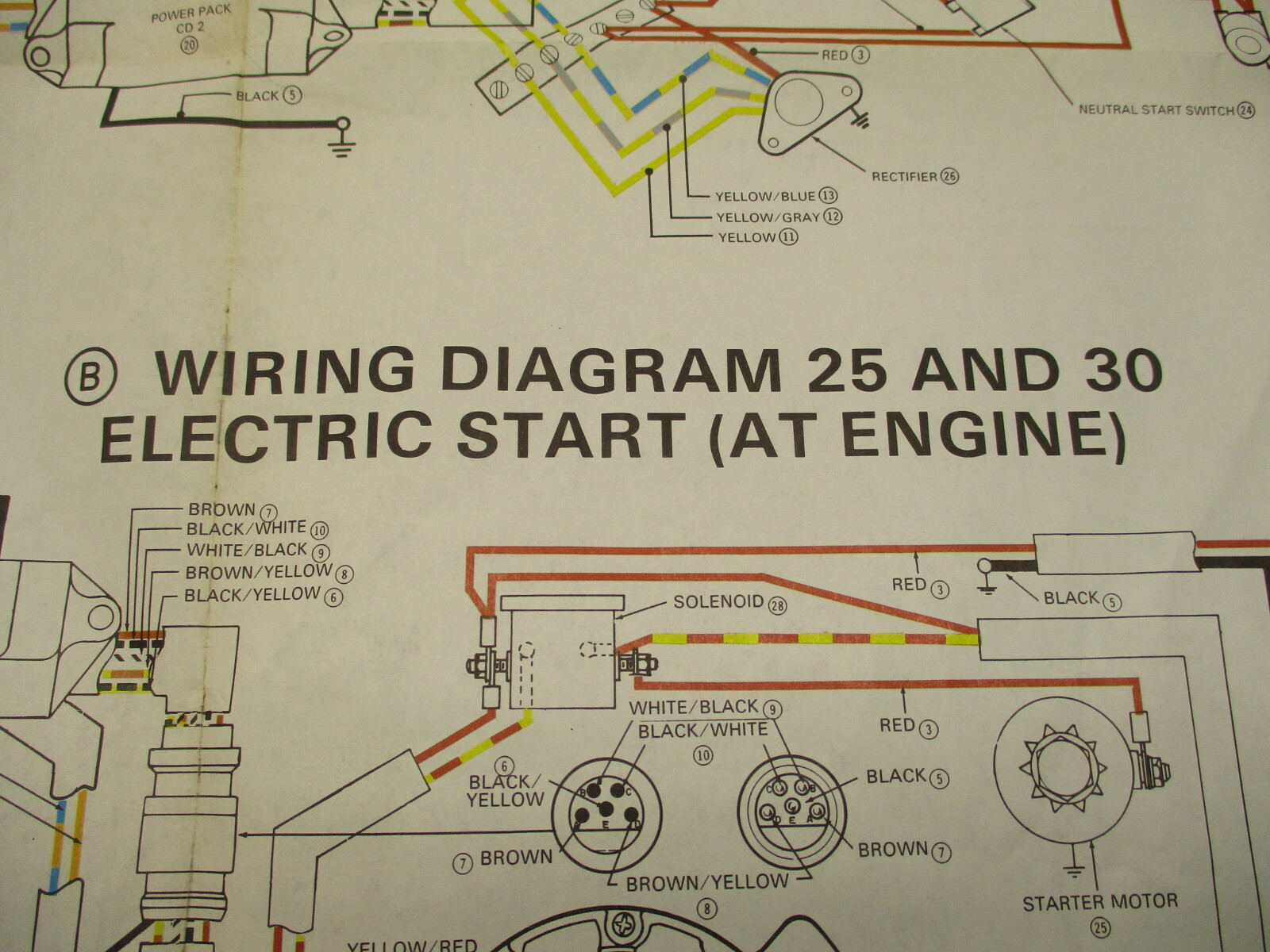

25 and 30 electric start (at engine)

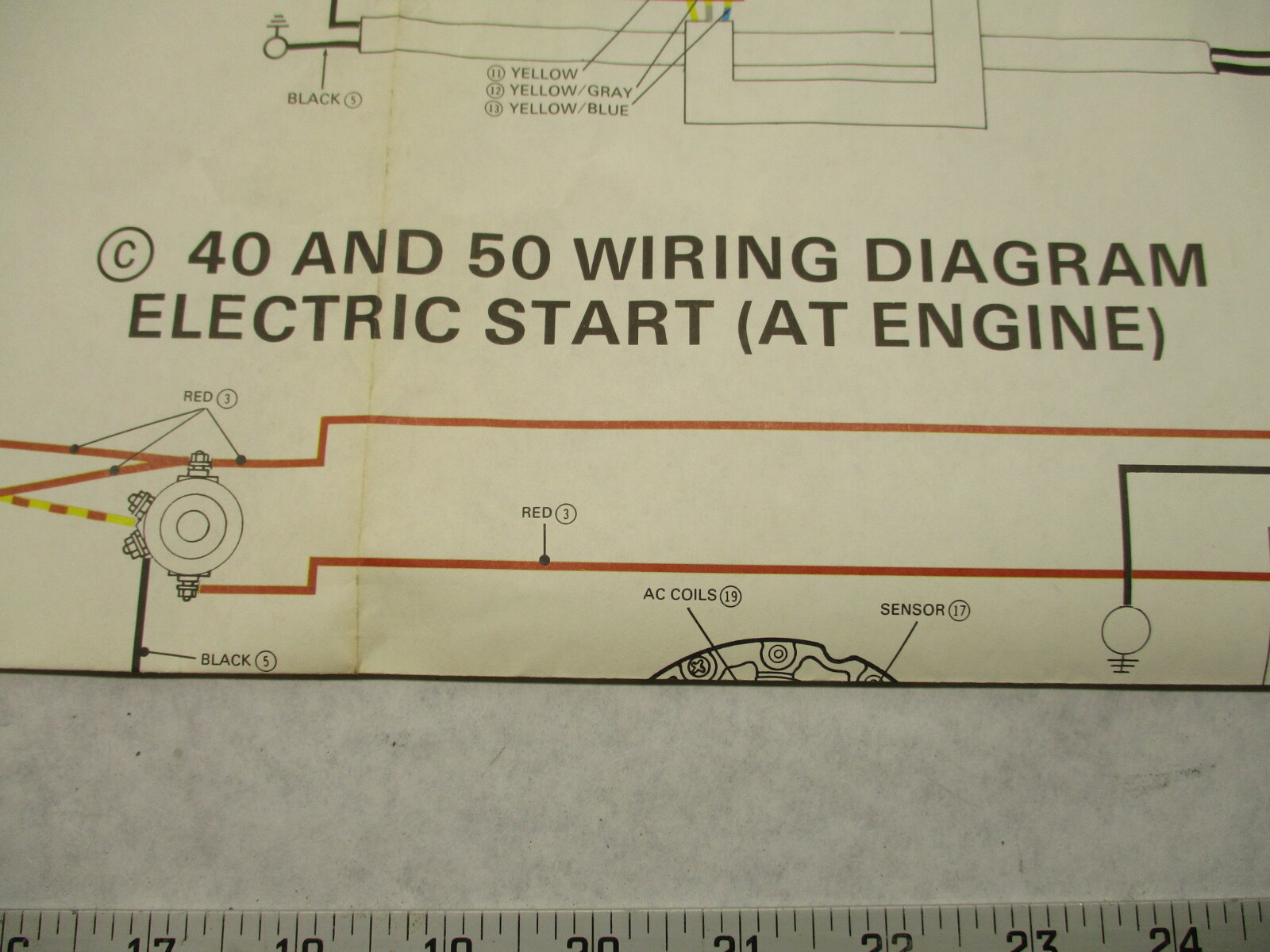

40 and 50 electric start (at engine)
You will get these exact used wiring diagrams.
- Brand: OMC
- Condition: Used
- Notes: Normal wear from use/age
- SKU: GBP006486
- Year: 1986
- MPN: GBP006486
- warehouse: QCab3
- Horse Power: 9.9-50
- Publisher: OMC
