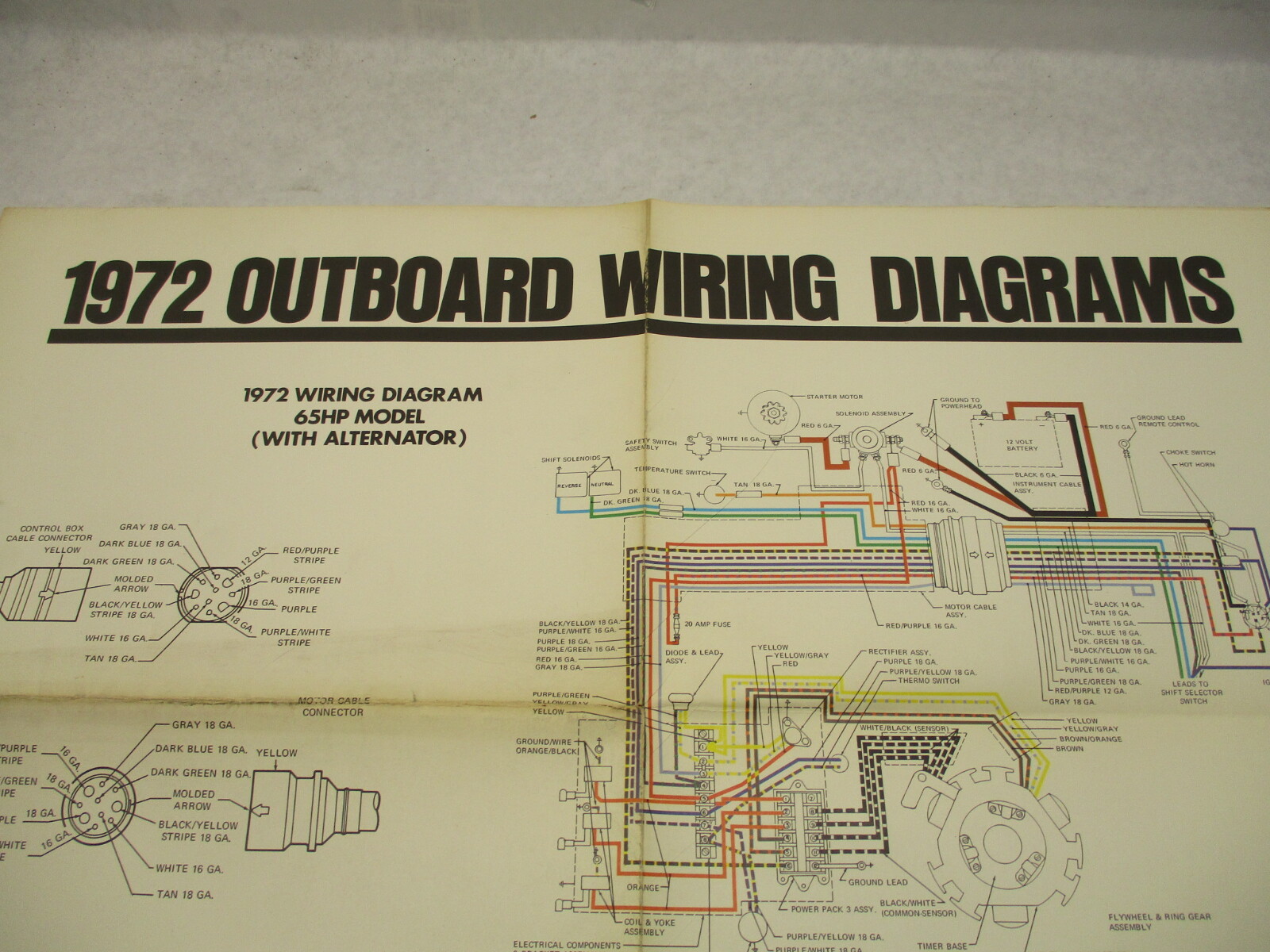

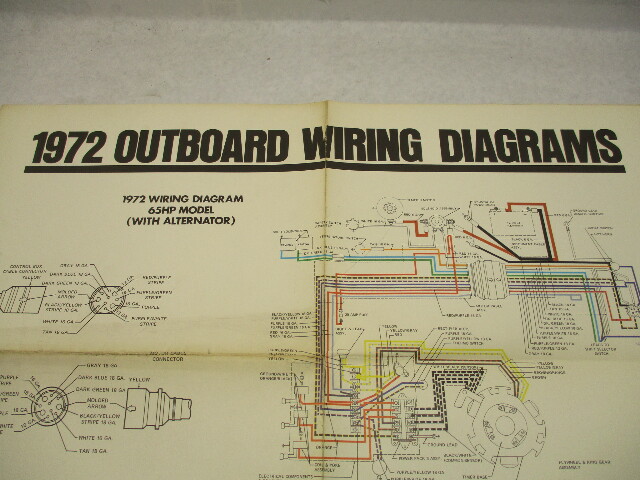

For sale is a set of used ignition wiring diagrams for 1972 Evinrude and Johnson outboard motors.
These are color coded wiring guides. The wires are clearly labeled.
Please see the pictures for the models covered. These are all on a large sheet of paper, not individual pages.
Covers Models:

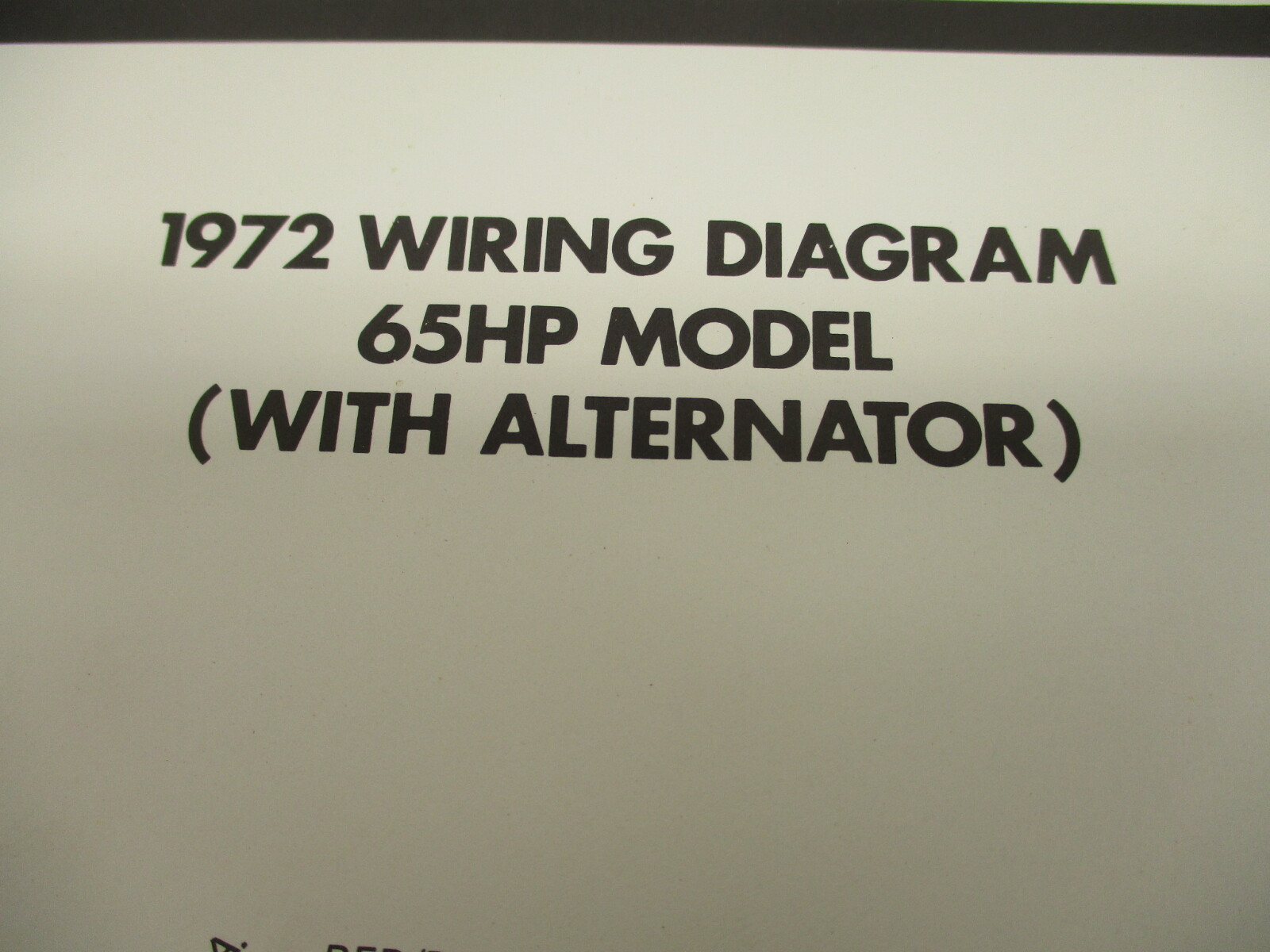

65 HP w/Alternator

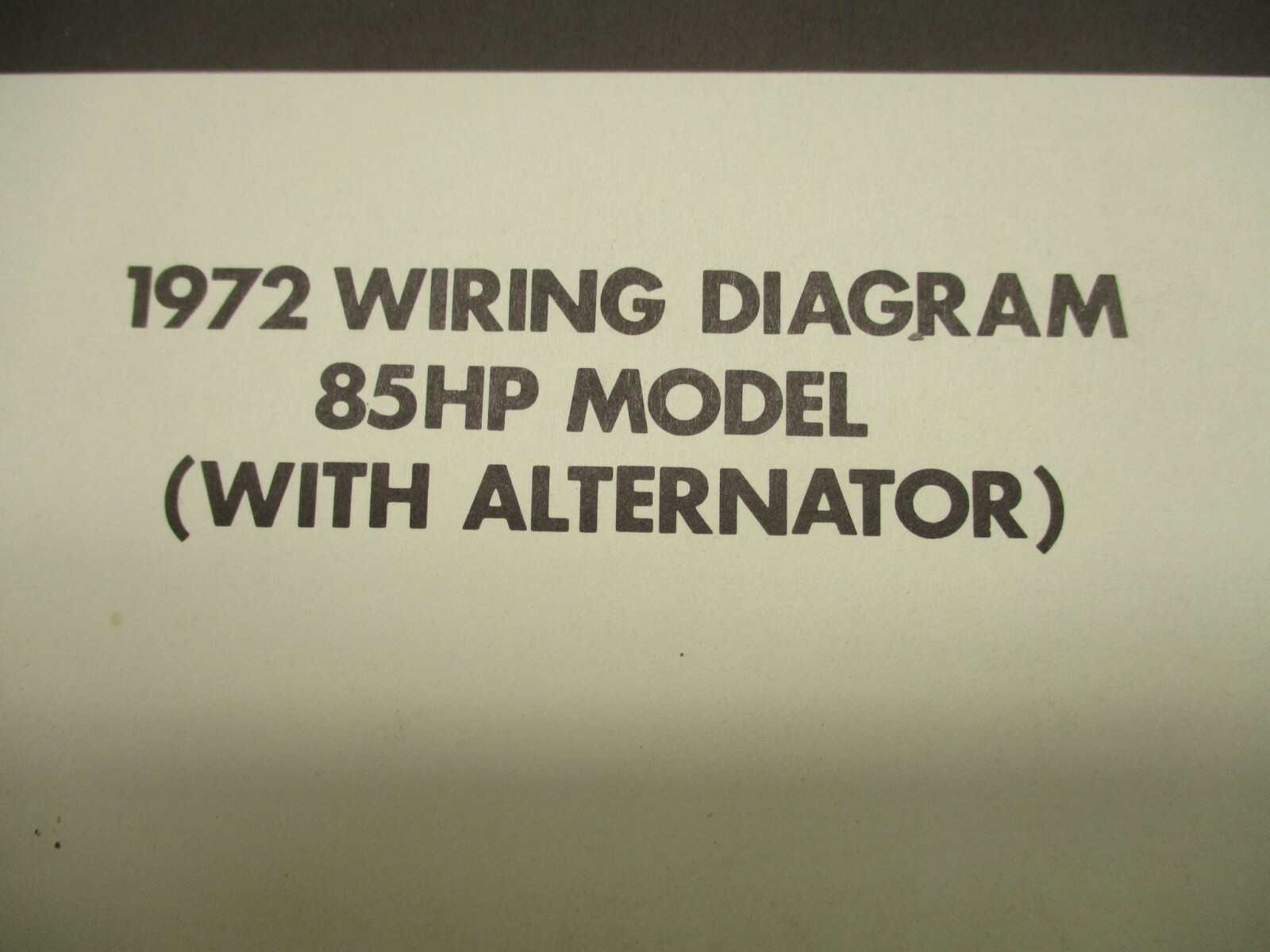

85 HP w/Alternator

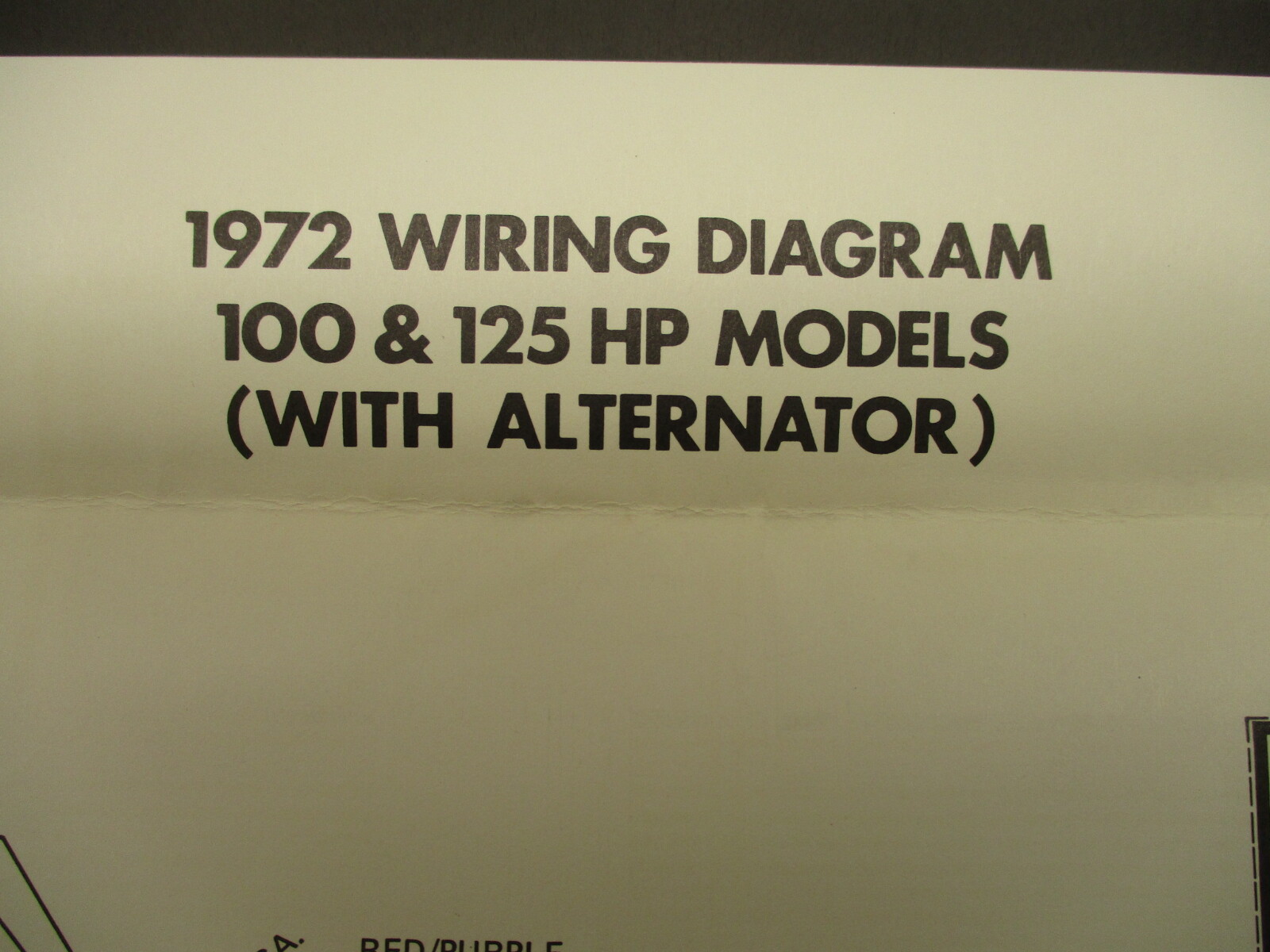

100 & 125 HP w/Alternator
You will get these exact used 1972 Evinrude outboard wiring diagrams.
These are color coded wiring guides. The wires are clearly labeled.
Please see the pictures for the models covered. These are all on a large sheet of paper, not individual pages.
Covers Models:
65 HP w/Alternator
85 HP w/Alternator
100 & 125 HP w/Alternator
You will get these exact used 1972 Evinrude outboard wiring diagrams.
- Brand: OMC
- Condition: Used
- Notes: Normal wear from use/age
- SKU: GBP006495
- Year: 1970
- MPN: GBP006495
- warehouse: QCab3
- Horse Power: 65/85/100/125
- Publisher: OMC
