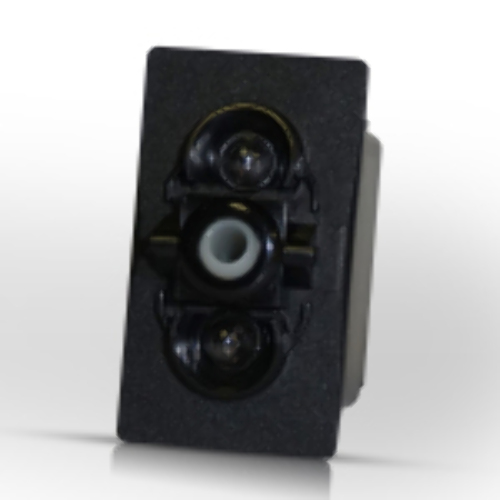

CARLING SWITCH ON-OFF Rocker Switch, Single Pole
Genuine Carling Rocker Switch.
Part number: V1D1-G66B
This rocker switch has two dependent lamps, one at the top and one at the bottom. This switch would be used for many common loads, when you want switch backlighting. The top lamp acts as a backlight (triggered by another source), and the bottom lamp acts as an indicator when the switch is ON.
Thank you for shopping at our store!!
Christine
Genuine Carling Rocker Switch.
Part number: V1D1-G66B
This rocker switch has two dependent lamps, one at the top and one at the bottom. This switch would be used for many common loads, when you want switch backlighting. The top lamp acts as a backlight (triggered by another source), and the bottom lamp acts as an indicator when the switch is ON.
| Function | ON-OFF |
| Type | SPST |

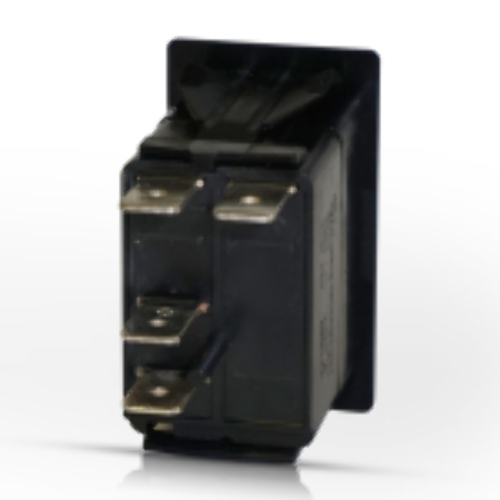

| Terminals | 4 |
| Light Type | White Incandescent |
| Top Light | Independent (ext. trigger) |
| Bottom Light | Dependent (when switch is up) |
| Voltage Rating | 12Vdc |
| Current Rating | 20A |
Thank you for shopping at our store!!
Christine
- Brand: CARLING SWITCH
- Condition: New
- SKU: V1D1-G66B
- MPN: V1D1-G66B
- warehouse: 1522
