90-869208400 Wiring Diagrams for Mercury Mercruiser 8.1L/496cid 8.1L w/ECT

90-869208400 Wiring Diagrams for Mercury Mercruiser 8.1L/496cid 8.1L w/ECT

90-869208400 Wiring Diagrams for Mercury Mercruiser 8.1L/496cid 8.1L w/ECT

90-869208400 Wiring Diagrams for Mercury Mercruiser 8.1L/496cid 8.1L w/ECT

90-869208400 Wiring Diagrams for Mercury Mercruiser 8.1L/496cid 8.1L w/ECT

90-869208400 Wiring Diagrams for Mercury Mercruiser 8.1L/496cid 8.1L w/ECT

90-869208400 Wiring Diagrams for Mercury Mercruiser 8.1L/496cid 8.1L w/ECT

$38.75

We are selling one set of Wiring Diagrams for Mercruiser stern drive engines.

Specs:

Part number: 90-869208400
Copyright Year: 2008

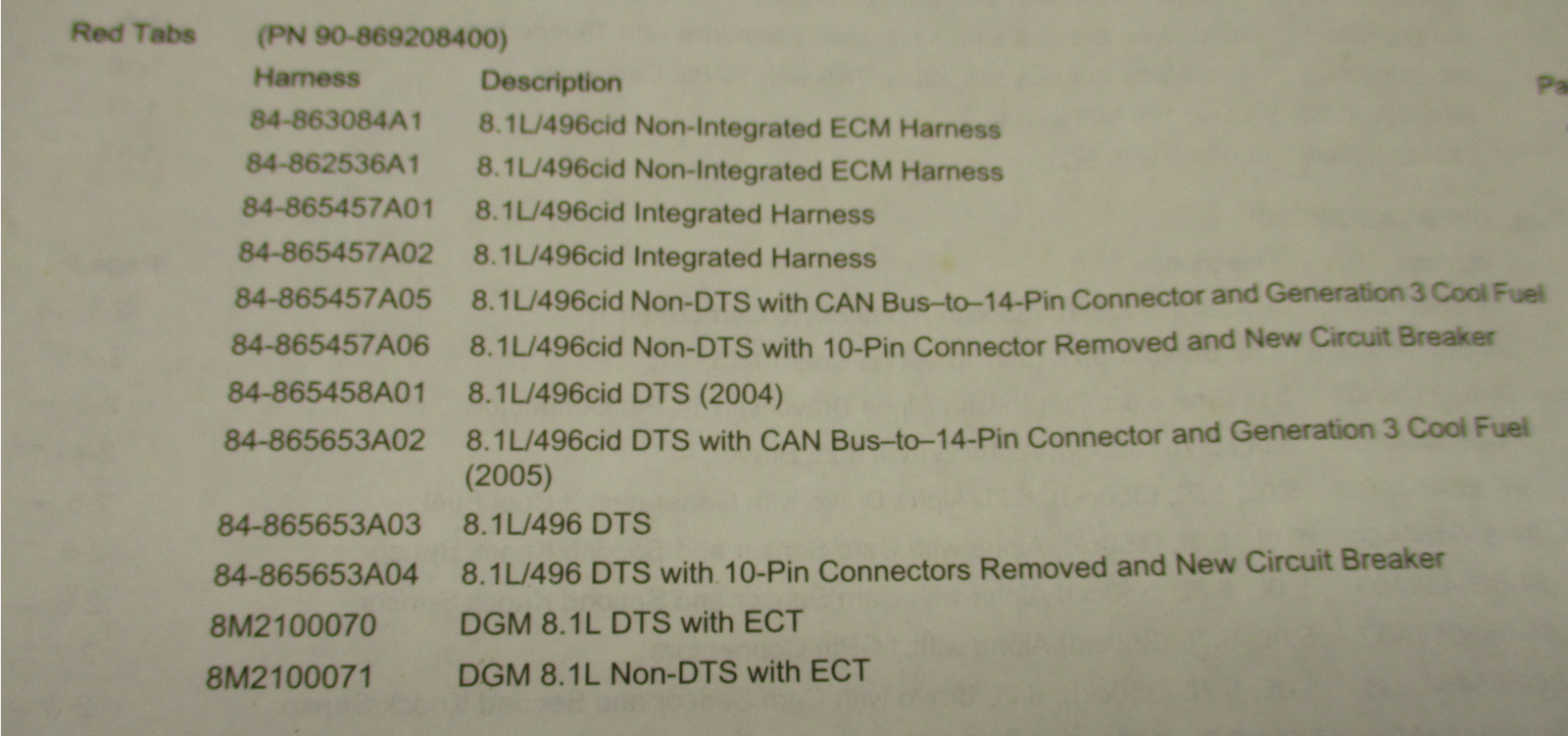

Covers wire harness: 84-863084A1, 862536A1, 865457A01, 865457A02, 865457A05, 865457A06, 865458A01, 865653A02, 865653A03, 865653A04, 8M2100070, 8M2100071

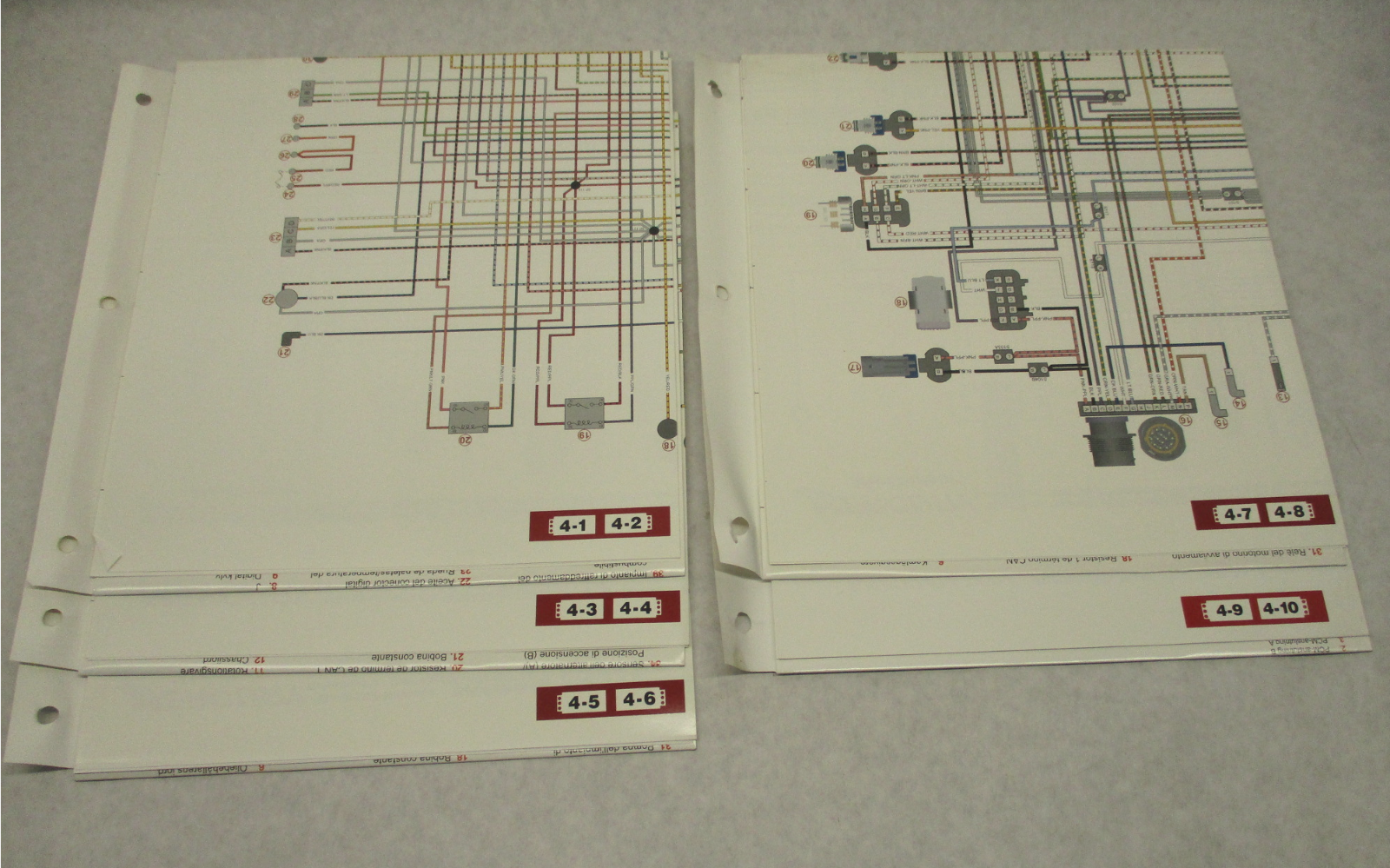

Includes 10 diagrams; red tab numbers 4-1 thru 4-10

Examples of what it covers are shown in photos.

Brand: Mercury Marine
Condition: Used
Notes: red tabs

SKU: GB693329203

MPN: 90-869208400
warehouse: 3105
