90-869208200 Wiring Diagrams for Mercury Mercruiser 5.0L 5.7L Alpha Bravo

90-869208200 Wiring Diagrams for Mercury Mercruiser 5.0L 5.7L Alpha Bravo

90-869208200 Wiring Diagrams for Mercury Mercruiser 5.0L 5.7L Alpha Bravo

90-869208200 Wiring Diagrams for Mercury Mercruiser 5.0L 5.7L Alpha Bravo

90-869208200 Wiring Diagrams for Mercury Mercruiser 5.0L 5.7L Alpha Bravo

90-869208200 Wiring Diagrams for Mercury Mercruiser 5.0L 5.7L Alpha Bravo

90-869208200 Wiring Diagrams for Mercury Mercruiser 5.0L 5.7L Alpha Bravo

90-869208200 Wiring Diagrams for Mercury Mercruiser 5.0L 5.7L Alpha Bravo

$38.75

We are selling one set of Wiring Diagrams for Mercruiser stern drive engines.

Specs:

Part number: 90-869208200
Copyright Year: 2008

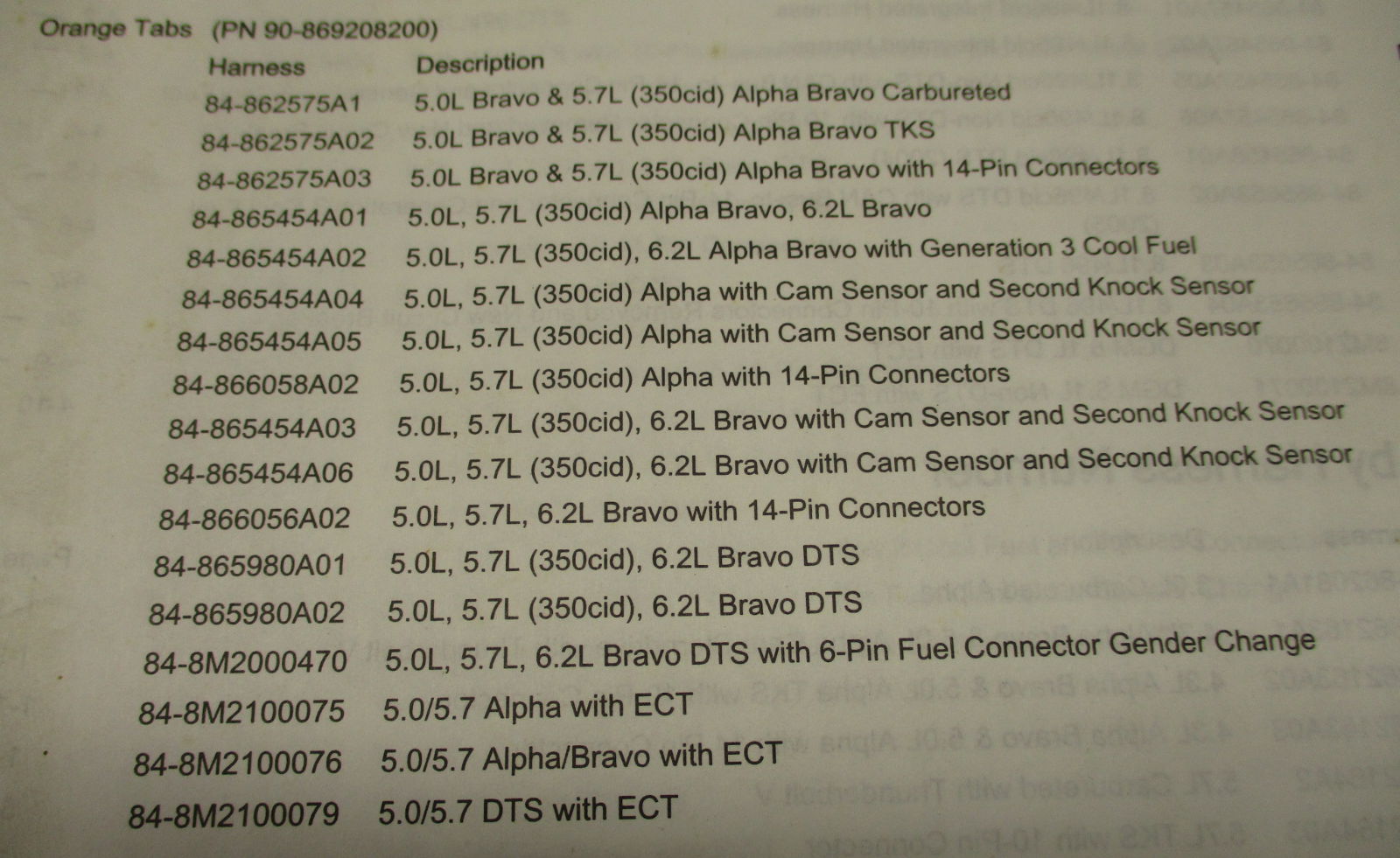

Covers wire harness: 84-862575A1, 862575A02, 862575A03, 865454A01, 865454A02, 865454A04, 865454A05, 866058A02, 865454A03, 865454A06, 866056A02, 865980A01, 865980A02, 8M2000470, 8M2100075, 8M2100076, 8M2100079
Includes 15 diagrams; orange tab numbers 2-1 thru 2-15

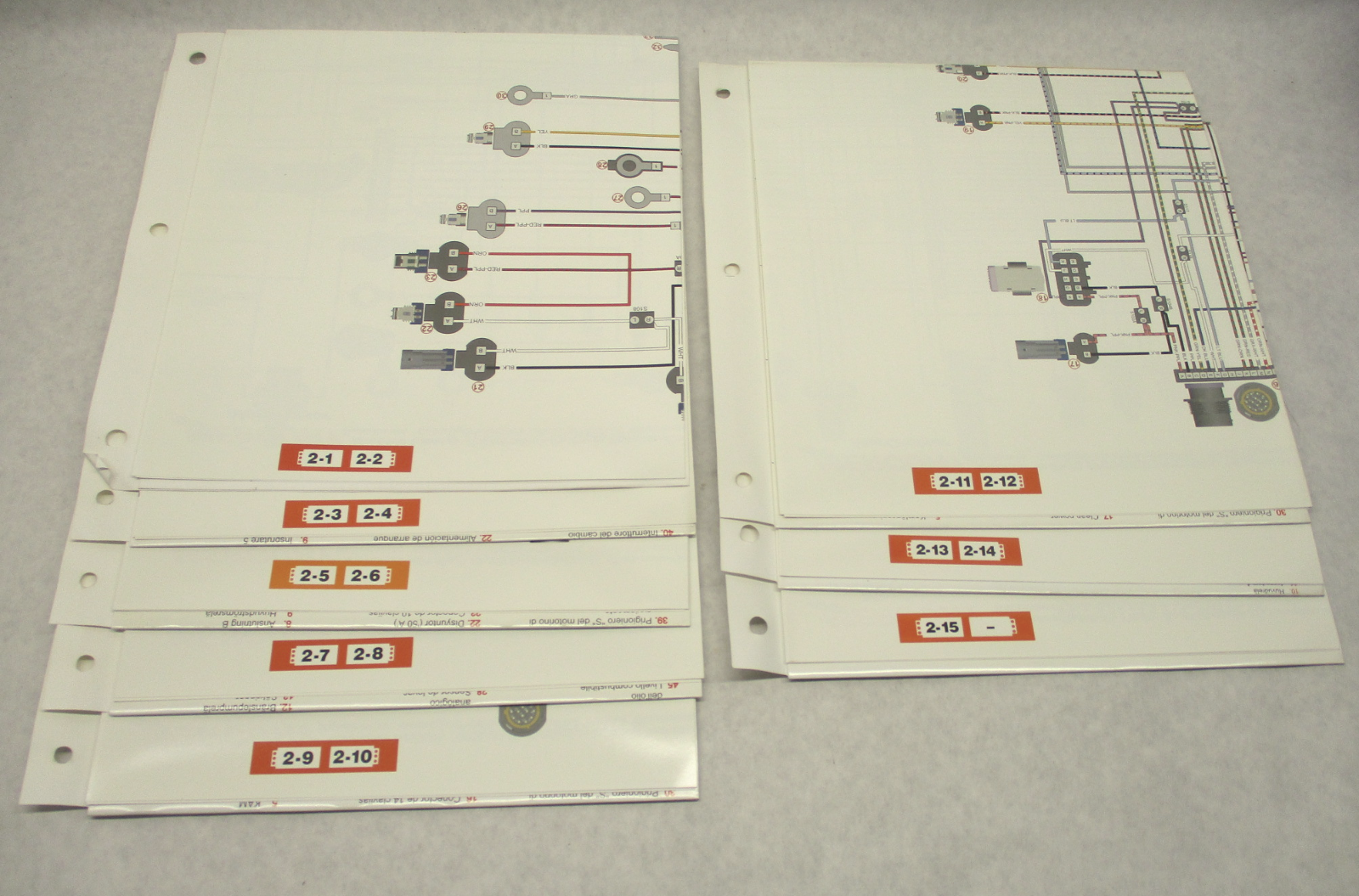

Examples of what it covers are shown in photos.

Brand: Mercury Marine
Condition: Used
Notes: orange tabs

SKU: GB693328197

MPN: 90-869208200
warehouse: 3105
